Our vacuum suction unit
Proprietary development
The innovation from Riebsamen
To hang on a crane or excavator

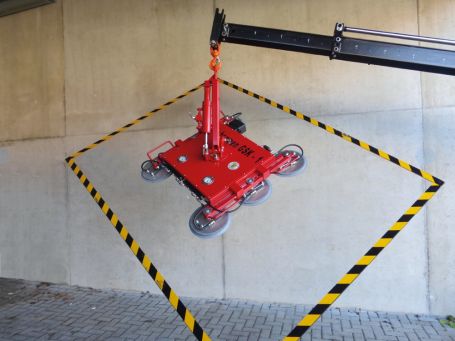

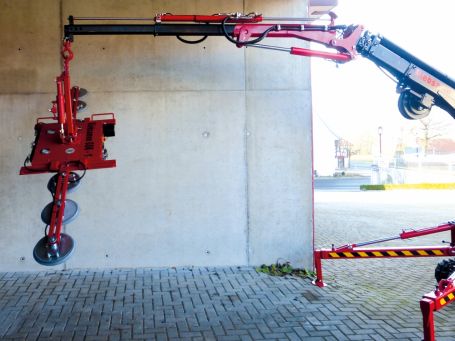

Vakuumsauger GSK-1
Vacuum lifter with 2-circuit system EN 13155
- Detachable tilting cylinder and support cylinder
- Placing glass panes, even at great heights
- Also ideal for narrow panes (e.g. conservatory roofs)
- Glass width of 30 cm and lengths of between 65 cm and 400 cm
- Can be converted to a depth of “just” 13 cm (ideal dimension for lowering between the building and the scaffolding)
- Main switch, voltage display, horn, suction-discharge
- Manual suction valve for switching on and off, changeable battery
- Optional height-adjustable suction cups / approx. 13 cm
- 6 adjustable suction cups as standard + 2 optional units
- Stable protective caps protect the suction cups
- Continuously inclinable with 90° lock, can be manually rotated through 360°
- Construction site transport device with mount for extensions
Ausstattung GSK-1
- Max. 600 kg lifting capacity
- Length 90 cm
- Width 90 cm
- Weight 80 kg
- Max. 8 suction cups
- 2 quick-change batteries
- Voltage 24 volts
GSK-1 vacuum suction unit up to 600 kg
