Tracked platform

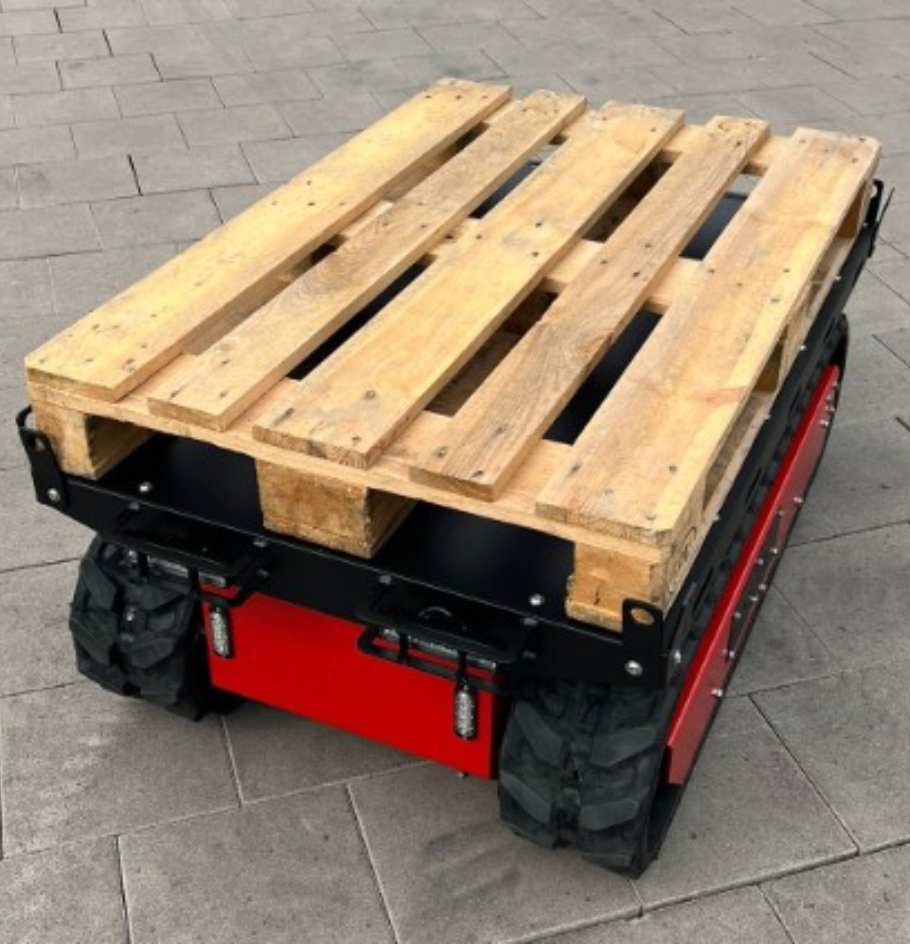

Whether for storing and transporting soil and bulk materials with the bulk container, moving paving stones up to 2 tons on pallet forks, transporting and pouring concrete into pool areas with the two-way tipper, or laying paving slabs with the crane attachment, the Riebsamen 2-ton hooklift dumper is ready for any task.
Thanks to the specially developed hooklift system, the skips and platforms can be attached or exchanged in no time.
We can also manufacture custom platforms to your specifications.
Technical data
| Width | 80 cm |
| Lenght | 120 cm |
| Height | 34 cm |
| Climbing ability | 45° |
| Radio control | Acron radio control |
| Color | RAL 3002 |
| Engine | 3 cylinder Kubota diesel engine, 25 PS, with electric starter and water cooling |
Model variants
| RP 750 | payload 750 kg | Dead weight 250 kg |
| RP 1000 | payload 1000 kg | Dead weight 310 kg |
| RP 1200 | payload 1200 kg | Dead weight 310 kg |
| RP 1500 | payload 1500 kg | Dead weight 330 kg |

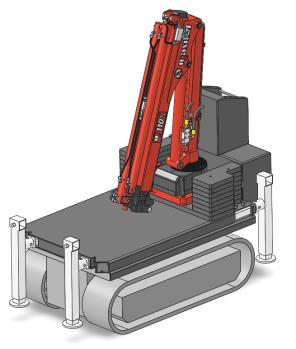

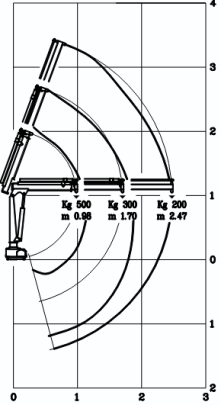

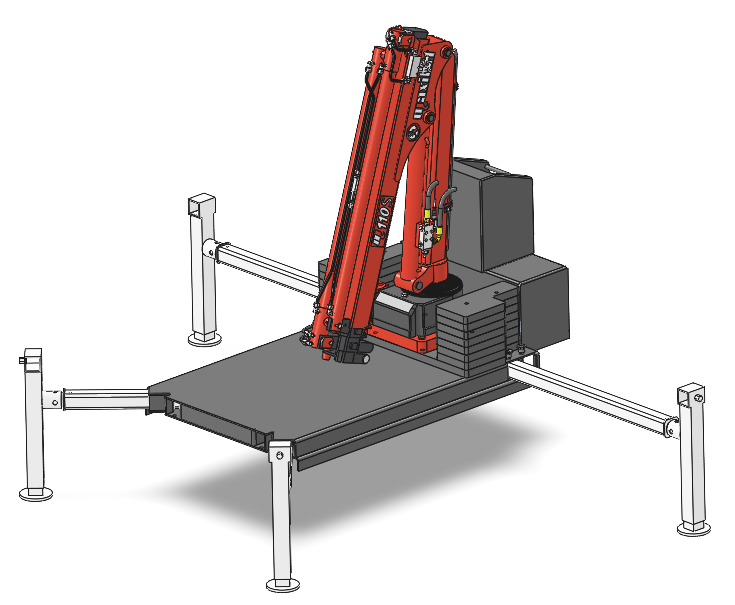

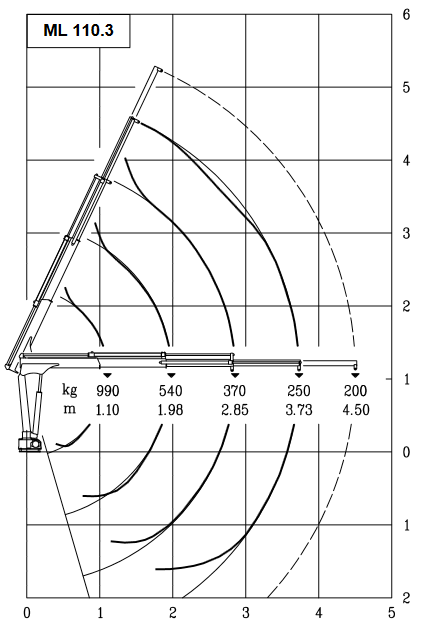

All information about the tracked platforms with crane modules is available as a PDF.
Hier kommen die PDF´s rein!
